Phasemation PP-2200
Moving-coil cartridge
The PP-2200 succeeds the PP-2000 in Phasemation’s moving-coil cartridge range. Its development focuses on the magnetic circuit, body construction and connection terminals.

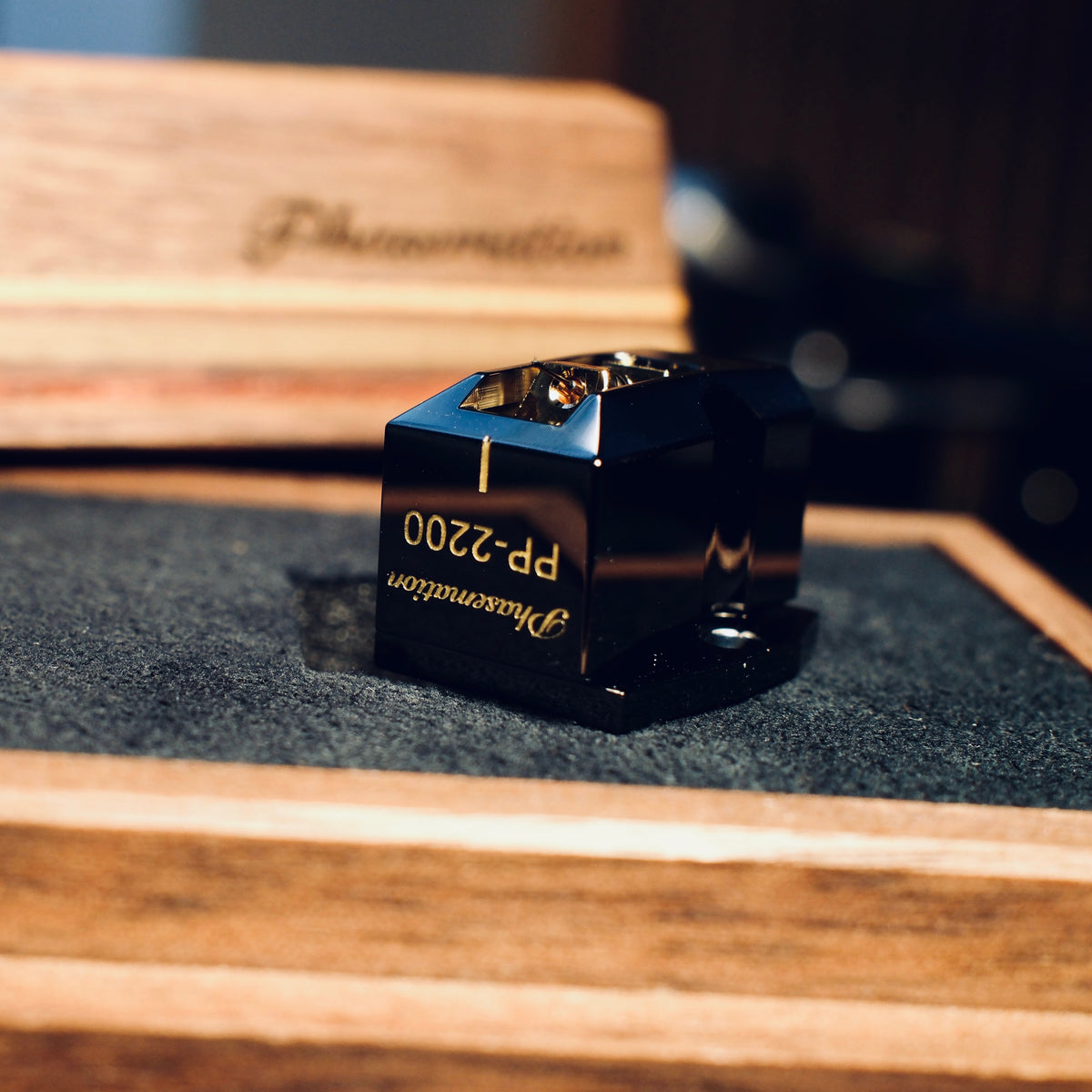

The revised magnetic circuit is designed to improve the retrieval of low-level musical information. A newly shaped, precision-machined titanium body with a DLC coating replaces the previous duralumin construction, increasing rigidity and controlling unwanted vibration. Machining is entrusted to Yuki Precision, the company behind the AP-01 turntable.

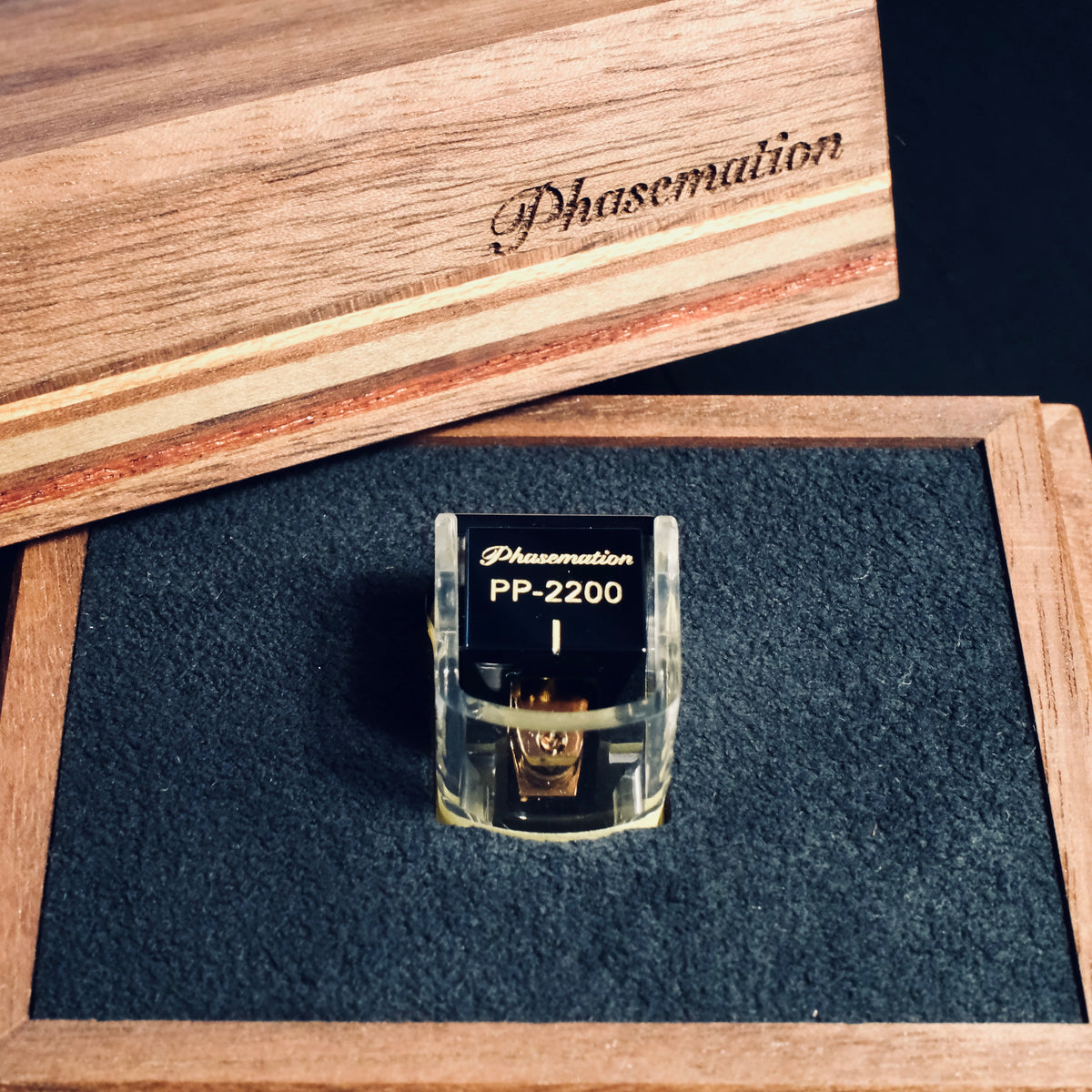

Tapered connection pins facilitate the attachment of headshell leads. The cartridge comes with a wooden presentation case inspired by Japanese Yosegi craftsmanship and a dedicated stylus-cleaning brush.
Technical specifications
| Specification | PP-2200 |
|---|---|
| Type | Moving-coil cartridge |
| Output voltage | ≥ 0.3 mV at 1 kHz, 50 mm/s, horizontal |
| Magnet | Samarium-cobalt |
| Coil wire | 6N oxygen-free copper |
| Cantilever | Solid boron, Ø 0.26 mm |
| Body | Machined Grade 64 titanium, DLC-coated |
| Stylus | Natural diamond, Line Contact, 0.03 × 0.003 mm |
| Frequency response | 10 Hz–30 kHz |
| DC resistance | 3.8 Ω |
| Channel balance | < 1 dB at 1 kHz |
| Channel separation | > 30 dB at 1 kHz |
| Tracking force | 1.7–2.0 g |
| Weight | 14.9 g |
| Recommended ambient temperature | 20–26°C |
