Thrax - Cotys
Pairs well with
Product details
Features
-
Dual Moving-Coil Inputs – Precision-matched for low-output and high-impedance cartridges.
-
Balanced Differential Topology – Eliminates ground loops and common-mode noise
-
Ultra-Low Noise Architecture – A differential input stage with -sub 70nV noise for blacker backgrounds.
-
True LCR Equalization – Nano-crystalline inductors and copper-foil capacitors for phase-perfect RIAA correction.
-
Fully Configurable Loading/Gain – Touchscreen interface for impedance (100Ω–1kΩ) and gain (50–70dB) adjustments.
-
Future-Proof Design – Field-upgradable firmware and optional external battery power supply.
-
Uncompromising Build – Machined from a single aluminum block, with universal AC input for global use.
Thrax Cotys – Redefining Phono Preamplification
The Cotys shatters conventional design barriers with a fully balanced, LCR-based RIAA equalizer, meticulously engineered to extract every nuance from modern high-performance moving-coil cartridges. Its differential input stage – optimized for the balanced topology and ultra-low impedance of moving-coil systems – works in concert with nano-crystalline inductors to establish an unprecedented standard: vanishing noise floors meet explosive dynamic range, revealing subtleties in both vintage vinyl treasures and contemporary audiophile pressings.
By completely reimagining the input stage architecture, the Cotys transforms the inherent advantages of moving-coil cartridges into a revelation of purity and precision.
The Cotys employs a nano-crystalline inductor in its first correction time constant, integrated into the initial gain stage to reduce noise contribution by 3–6 dB over conventional designs. By adopting fully balanced operation, it eliminates ground loops and extraneous noise—a critical advantage in modern systems where turntables often rely on switch-mode motor drives. The difference is not just measurable; it’s immediately audible.

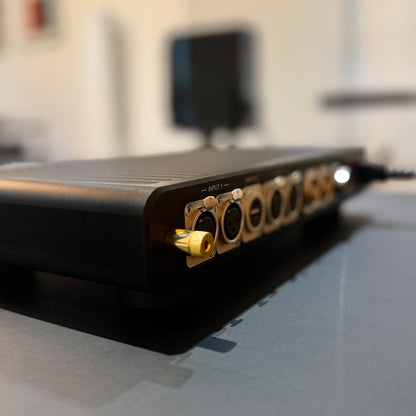

Designed for the discerning analog enthusiast, the Cotys features two independently configurable inputs, accommodating a wide range of cartridges while delivering performance typically reserved for far costlier systems. Flexibility extends to connectivity: the circuit is equally optimized for both RCA and balanced operation, with connectors customized at the time of order.

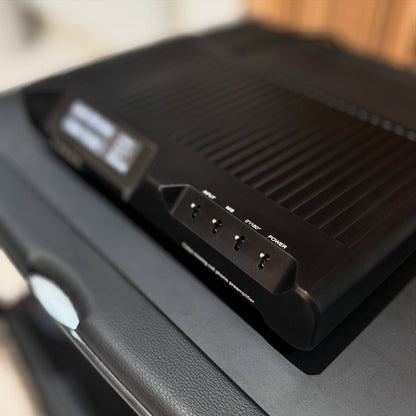

Control is intuitive, courtesy of a user-friendly touchscreen interface—simple enough for immediate use yet capable of supporting future enhancements.
Uncompromising Signal Integrity
Every component is selected for sonic excellence, including:
-
Copper and silver signal capacitors
-
Tantalum nitride resistors
-
Proprietary solder alloy for optimal signal path purity
The result? Reference-grade sound, backed by Thrax.
A Fusion of Art and Engineering

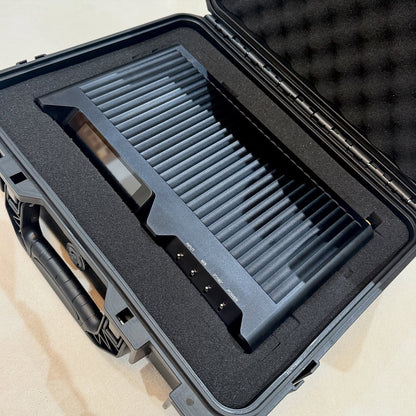

Housed in a solid, machined-aluminum enclosure, the Cotys is as indestructible as it is visually striking. Its design transcends mere functionality, bordering on high-end audio sculpture—built to last a lifetime and beyond.
Specifications
- 6kg
Dimensions
- 340 x 65 x 210 mm
Power max
- 15W 115/230V 50/60Hz
Input level
- 100uV-10mV
Gain
- 50-70db
Input impedance
- 80-1000 Ohm
Max output level
- 6V
Signal to Noise
-
Frequency responce
- 20-20,000Hz +/- 0.5db
Specifications
